Hiotron’s DTMS Solution

Hiotron Distribution Transformer Monitoring System aka DTMS redefining the capabilities and benefit to “Power Distribution Companies and Transformer manufacturers” that can be achieved by Monitoring Distributed Power Transformer Network.

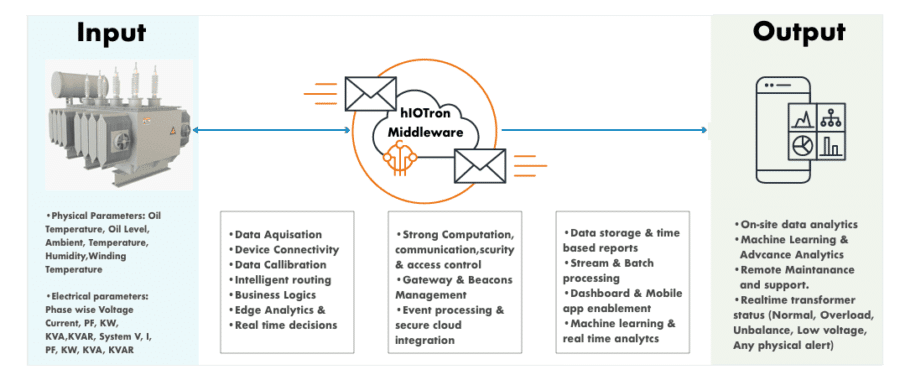

DTMS Structure

Why IoT Based Remote Distribution Transformer Monitoring system?

In the era of rapid industrialization and fast changing industrial working environment, automation, big data analytics and internet of things playing a critical role. Planning downtime and physically monitoring various parameters of transformer, now seems to primitive age work for power distribution companies. Monitoring various common parameters from comfort of IT cell/ office become new norms.

Power & Distribution transformers are the main backbone for any power distribution network. Automation of distribution substations improves visibility of the low voltage (LV) network and helps a utility company to utilize the power network in an optimum way. Many utility companies around the world are implementing, or have plans to implement, a smart metering solution. The first step of distribution transformer system is monitoring distribution transformers and, due to the importance of this asset, monitoring of critical parameters is essential.

Hiotron’s  Distribution transformer monitoring system playing critical role in empowering distribution companies and transformer manufactures with handy and real time information about various common as well as advance level parameters which enable them to define life and performance of the unit. The compact DTMS solution along with high industrial grade sensor gives client the real-time and accurate info.

DTMS Top Class Benefits

With Hiotron’s DTMS, distributors consistently improve operational efficiency and reduce maintenance costs on average by 30%. In addition to substantial savings, most achieve ROI in less than a year with one-time basis upfront hardware costs.

Real time Monitoring & Alerts

Improved (Predictive & Preventive) Maintenance

Increased Availability or Up-time & Efficiency

Reduced Aging

Downtime Analysis

Demand Planning

Reduce losses & detailed bottleneck analysis

Better Asset & User Management

Remote Transformer Monitoring Solutions consist 4 major components

The Hiotron’s Remote Distribution Transformer Monitoring Solutions is a combination of telemetry, hardware, IoT platform and software that enables monitoring and data intelligence in a variety of use cases for single & Multiple transformers including those that require intrinsically safe environments and GPS tracking.

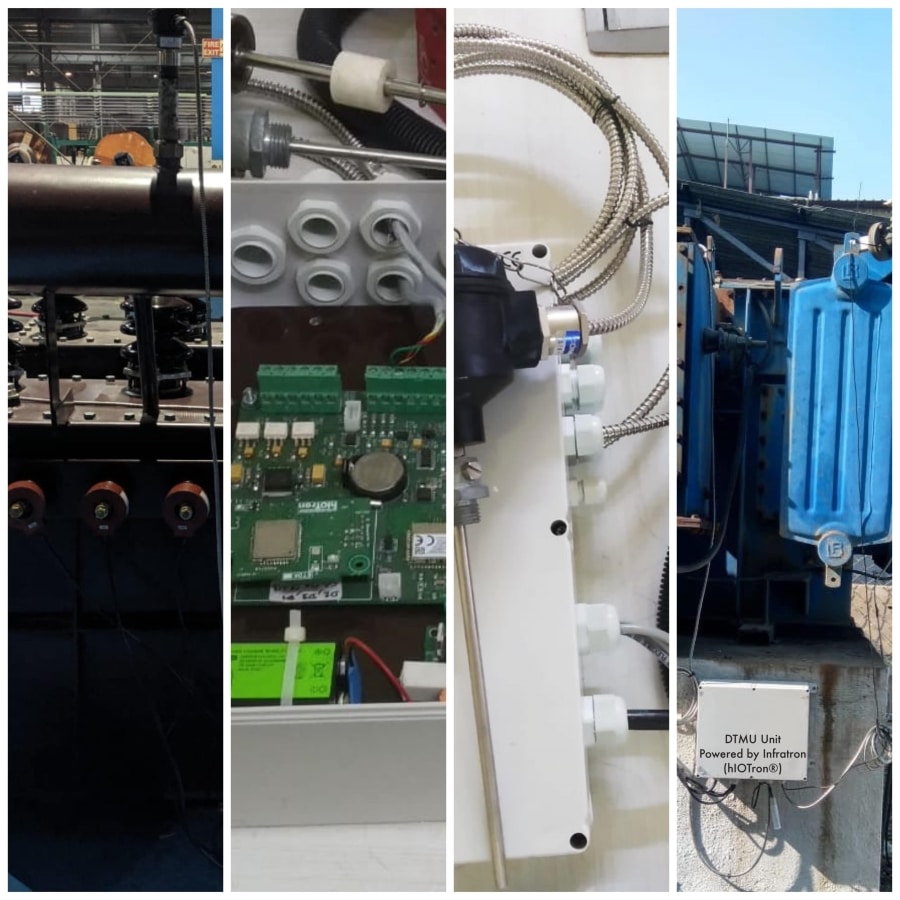

DTMU (Distribution Transformer Unit) is smart transformer monitoring device act as a main central unit which is perfectly suitable for remote transformer monitoring applications powered through mains (24v), which use GSM (2G,3G,4G) for cloud connectivity with in-built GNSS module. It is also equipped Li-ion for battery in case of power failure for 15-20 days & Flash & RTC to store the records in case of network failure.

DTMU Main Features

  1. Having multiple Analog (4/20mA.)/Digital GPIO for sensors along with ModBus-RTU Provision for energy meter integration.
  2. Supports FOTA (Firmware over the Air)
  3. Provides Data Delivery Acknowledgment.
  4. No Loss of Data at any point.
  5. Trigger Alerts/Rules on edge instead cloud

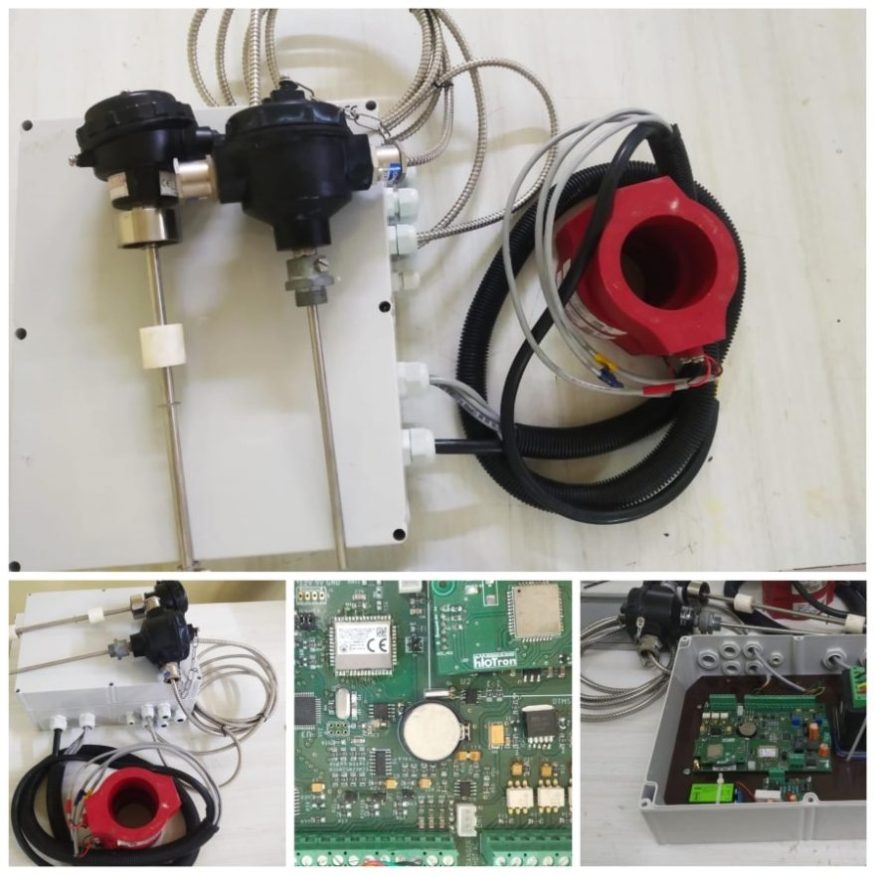

Component Details
8 Analog & 4 Digital Pins Collect Data through Analog (4/20Ma) & digital sensors
Modular GSM Provision for 2G, 3G & 4G network.
Internal GNSS Global positioning system/Global Navigation Satellite System.
RTC Real time clock to store data with time logs.
EEPROM (256MB) Memory to store 15-20 days records in case power or network failure.
Li-ion battery 2700MAH battery backup in case of power failure
Internal GNSS antenna An antenna used for GPS connectivity. Integrated into FM device PCB. Does not have external connector.
External GPRS antenna An antenna used for GSM connectivity having external SMA connector.
Charging/Discharging circuit Charge & discharge internal battery through mains automatically.
Over voltage protection Protect device through over voltage from mains.
  • Oil Level Sensor
  • Oil Temperature Sensor
  • Ambient Temperature & Humidity Sensor
  • Energy Meter (Modbus-RTU)

hIOTron IoT platform delivers a comprehensive platform as a service (PaaS) which enables the rapid design, development, deployment, and operation of consumer & enterprise IoT applications. hIOTron IoT platform takes care of end customer application dashboard & mobile application access along with all in one synchronized functionality for various application dependent features such as
Transformer platform

  • Device Management – Manage & Register your Home Devices with proper
    Authentication & Authorization process.
  • Device Connectivity – Seamless connectivity from Platform to Hi-Gate & Hi-Gate to Hi-Nodes.
  • Data Storage – Store Important Devices and User Data to get best values results.
  • Data Analytics – Supports multiple analytical models in terms of scenarios (Condition bases automatic actions).
  • Dashboard & Application – Fully sync Dashboard & Mobile Application in Android/iOS/Windows.

Quickly and easily configures and controls whole-home audio systems, lighting, shades, thermostats, door locks, and security systems. Use this free home automation dashboard & mobile App to set up these devices with custom presets on an Android® Apple® iPad® and control them from iPad, iPhone®, and iPod touch® devices.
Transformer Dashboard and application

Real Time Monitoring & Instant Alerts

Load status

Alerts for Overload, Under-load and Balance load variation from set threshold.

Vital Parameters Variation

Alerts for Active Power (KW), Apparent Power (KVA), Reactive Power (KVAr), PF, Harmonics, voltage, current and more parameters variation from set threshold.

Thermal & Cooling Protection

Alerts for Oil Temperature, Winding Hotspot Temperature, Oil level (high/low/medium), Ambient temperature & Humidity variation from set threshold.

Demand Variation

Alerts for demand variation from set threshold such as low, medium or high.

Power Status

Alerts for extra units consumed or loss from set threshold.

Availability status

Alert whether transformer power is on or off.

Network Status

Alert whether DTMU unit online or not.

Others Parameters

Provision to Set alerts for rest all 105 parameters.

Frequently Asked Questions

DTMS isn’t just for protecting your transformer from failures. It also monitors parameters such as PF, Load unbalances, Overvoltage etc which showcase the quality of power and the losses associated with the usage of various equipment. By monitoring these and taking corrective action, one can save energy, plan their loading of different equipment and protect their equipment from failure. Further it helps in planning the maintenance of the transformer based on the condition of the transformer and helps outage. Hence, whether the transformer is new or old, it will benefit from DTMS.

Power Quality Audit (PQA) is just one time & manual process which can be performed only once periodically or when failure in terms of cost observed in the final billing wherein Remote DTMS is continuous & automatic real time remote monitoring device deployed right on the transformer. Hence, anytime variation or fluctuation in the load, apparent power, power unity due to failure of capacitor banks, harmonic filters or anything, it will be immediately notified to concerned authority to take corrective actions in-order to avoid extra energy billing cost.

Avg. Recurring cost INR500/Transformer/Month (MOQ1000 or above).

Hence, 6K/Year & 30k/5 Years. Hence, for each transformer if we are giving warranty for 5 years then recurring cost coming for remote & preventive maintenance approx. less than 10% of transformer cost (INR3.5Lacs).

Transformer Remote monitoring cannot replace Transformer Manual maintenance completely or compared with each other but with this OEMs or utilities can perform manual maintenance more effectively and in planned manner. This system will help them to shift them from time based maintenance to the condition based maintenance to reduce number of frequent site visits, streamline efforts in right direction and most importantly avoid firefighting, damage control scenarios by intimating to authorities before any failure happens using platform Predictive Maintenance tool.

Therefore, if we just compare maintenance expenses with traditional way versus maintenance expenses with DMTS solution then huge amounts of savings will be resulted as a payback of this complete solution.

Typically, on the support base of the transformer or within 1-2 meter of the transformer.

No, we don’t monitor the oil moisture as the cost of the sensor itself is very high and hence the cost of the solution will increase to a very high value which would not make sense to deploy on a distribution transformer.

Yes. This will require additional effort and cost

It will store the data and once network is restored; data will be sent back so no loss of data.

From the secondary output voltage of transformer (needs 230 V ac).

DTMS comes with IP 65 protection box.

Yes. Ideally it Takes around 1 hour to install the device.

No. We do it for distribution transformer with secondary output of 430v.

Default At every 15 minutes the data is collected and recorded in the dashboard with timestamp wherein it can be configured upto 1 minute.

Yes, all transformers are geo-tagged and shown on a single dashboard.

Mobile App is available only in Android.
