hIOTron’s [RTMS] Remote Tank Monitoring System

hIOTron’s RTMS is a tank monitoring and distribution optimization solution designed to allow distributors of bulk lubes, gases and fuels, propane, and virtually any other fluid to remotely monitor tank fill levels, inventory and improve route optimization for their delivery drivers. Using the power of the IoT, wireless connectivity, and smart devices.

RTMS is purpose-built to improve logistics, inventory management, and route planning. Moreover, RTMS is a perfect fit for bulk fluid distributors who want to increase efficiency, reduce miles driven, eliminate emergency deliveries and improve their own ROI.

With RTMS you can keep track of exact levels in your tanks at any time. See if levels are increasing or decreasing and get alarms whenever certain thresholds are reached. Streamline your service operations by refilling/emptying only when needed.

Remote tank monitoring

hIOTron’s Remote Tank Monitoring Solutions Covers Various Industries

Wireless Remote Tank Monitoring System lets you check fluid levels in multiple tanks, across multiple sites, all from your computer or smartphone for real time access to data you can use to reduce your costs, improve your efficiency and expand your customer base.

hIOTron’s Remote Tank Monitoring Solutions combines 4 components

The hIOTron’s Remote Tank Monitoring Solutions managed solution is a combination of telemetry, hardware, IoT platform and software that enables monitoring and data intelligence in a variety of use cases for single tanks and tank farms, including those that require intrinsically safe environments and GPS tracking.

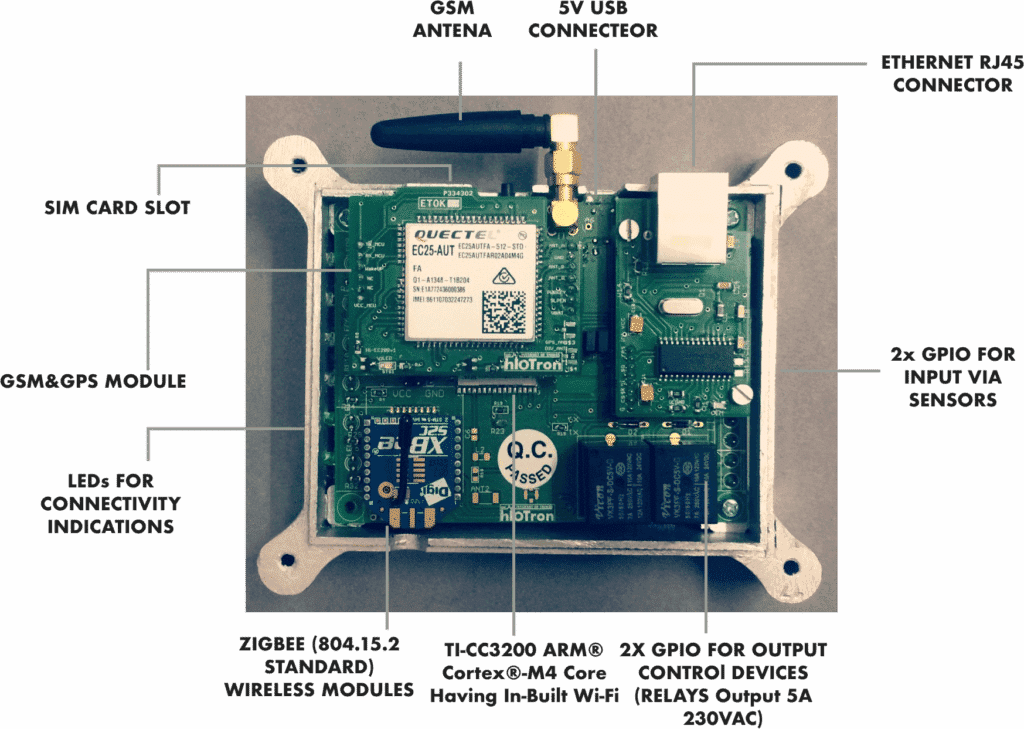

Gateway specification

HI-DTM (Digital Tank Manager) is smart tank manager act as a main central unit which is perfectly suitable for remote tank monitoring applications powered through mains (5v/12v), having majorly Zig-Bee for local and GSM (2G,3G,4G) for cloud connectivity with in-built GNSS module. It is also equipped Li-ion for battery in case of power failure for 15-20days & EEPROM & RTC to store the records in case of network failure.

ComponentDetails
Modular Zig-BeeCollect Data through Hi-TDRs (Tank Data Readers) over local Zig-Bee (IEEE804.15.2 standard) Network
Modular GSMProvision for 2G, 3G & 4G network.
Internal GNSSGlobal positioning system/Global Navigation Satellite System.
RTCReal time clock to store data with time logs.
EEPROM (256MB)Memory to store 15-20 days records in case power or network failure.
Li-ion battery2700MAH battery backup in case of power failure
Internal GNSS antennaAn antenna used for GPS connectivity. Integrated into FM device PCB. Does not have external connector.
External GPRS antennaAn antenna used for GSM connectivity having external SMA connector.
Charging/Discharging circuitCharge & discharge internal battery through mains automatically.
Over voltage protectionProtect device through over voltage from mains.

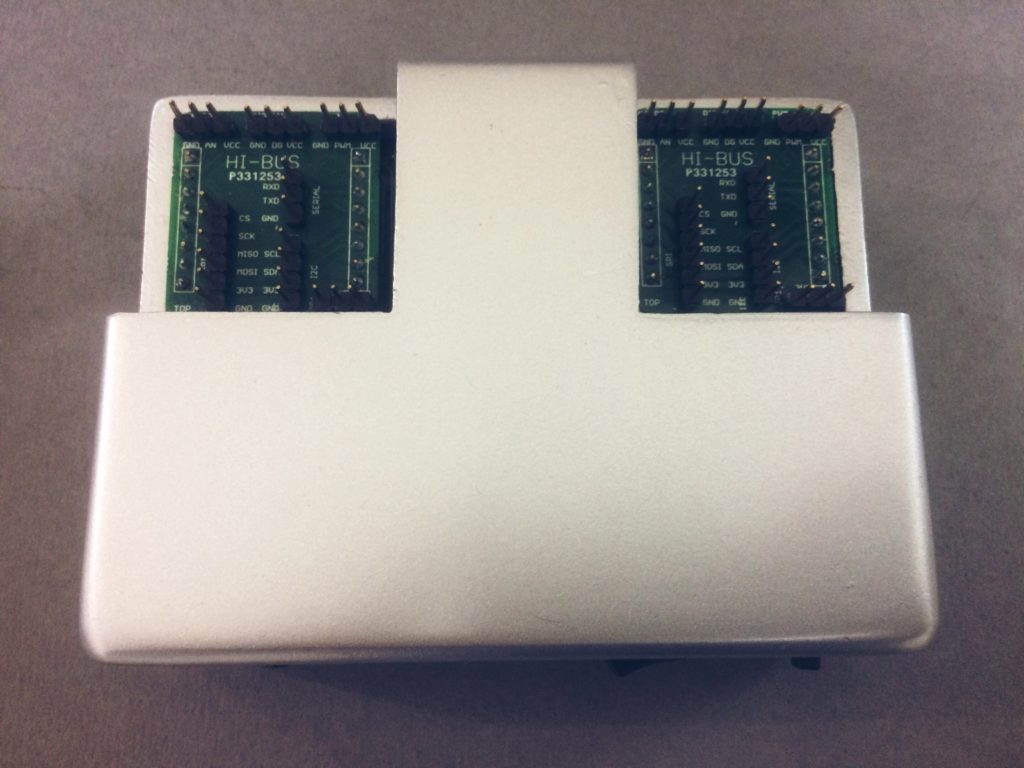

HI-DTRs  –  The HI-DTR (Digital Tank Reader) is a simple to install tank monitoring device designed for use with the hIOTron’s RTMS solution. The DTR can wirelessly communicate high, low, and actual tank fill level data with Hi-DTM over Zig-Bee network. DTR enables easy monitoring of bulk liquid tanks, mobile tanks, vessels, and totes.

ComponentDetails
Modular BluetoothWork as a BLE scanner to communicate with temperature sensor equipped Beacons.
Modular GSMProvision for 2G, 3G & 4G network.
Internal GNSSGlobal positioning system/Global Navigation Satellite System.
RTCReal time clock to store data with time logs.
EEPROM (256MB)Memory to store 15-20 days records in case power or network failure.
Li-ion battery2700MAH battery backup in case of power failure
Internal GNSS antennaAn antenna used for GPS connectivity. Integrated into FM device PCB. Does not have external connector.
External GPRS antennaAn antenna used for GSM connectivity having external SMA connector.
Charging/Discharging circuitCharge & discharge internal battery through mains automatically.
Over voltage protectionProtect device through over voltage from mains.

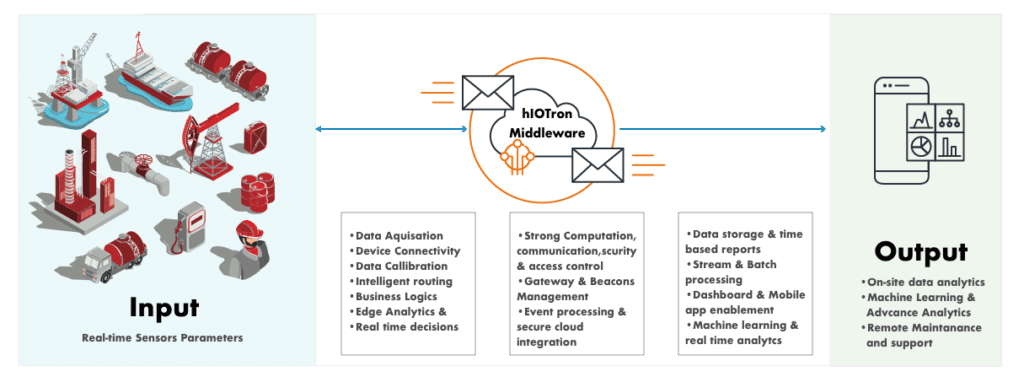

hIOTron IoT platform delivers a comprehensive platform as a service (PaaS) which enables the rapid design, development, deployment, and operation of consumer & enterprise IoT applications. hIOTron IoT platform takes care of end customer application dashboard & mobile application access along with all in one synchronized functionality for various application dependent features such as

  • Device Management – Manage & Register your Home Devices with proper Authentication & Authorization process.
  • Device Connectivity – Seamless connectivity from Platform to Hi-Gate & Hi-Gate to Hi-Nodes.
  • Data Storage – Store Important Devices and User Data to get best values results.
  • Data Analytics – Supports multiple analytical models in terms of scenarios (Condition bases automatic actions).
  • Dashboard & Application – Fully sync Dashboard & Mobile Application in Android/iOS/Windows.

Quickly and easily configures and controls whole-home audio systems, lighting, shades, thermostats, door locks, and security systems. Use this free home automation dashboard & mobile App to set up these devices with custom presets on an Android® Apple® iPad® and control them from iPad, iPhone®, and iPod touch® devices.

iot platform Dashboard

Powerful Features

With RTMS you can remotely monitor above and below-ground tanks, schedule deliveries, and better manage inventory needs. You’ll have immediate, on-demand access to data on the level, temperature, and condition of your tanks.

With this visibility you can optimize inventory for multiple locations, deliver larger loads, and calculate days left in existing inventory.

Top Class Benefits

With hIOTorn’s RTMS, distributors consistently improve operational efficiency and reduce delivery costs on average by 30%. In addition to substantial savings, most achieve ROI in less than a year with one-time basis upfront hardware costs.

Remote Tank Monitoring
  • Improved Inventory Management – Eliminate manual tank readings and decrease inventory shrinkage. Minimize time spent on inventory management.

  • Eliminate Emergency Deliveries – Eliminate emergency deliveries and maximize delivery and pickup quantities.

  • Reduce the Number of Scheduled Deliveries – Reduce time required for dispatcher to optimize daily deliveries.

  • Return Delivery Trucks Empty – Decrease call in orders and order disputes and optimize orders and invoices generated.

  • Reduce Fuel Consumption – Save on fuel, staff time, and wear-and-tear on the delivery fleet.

  • Reduce Wear on Service Vehicles – Achieve an average annual reduction of 6 deliveries per tank.

  • Increase Staff Productivity – Provide inventory to sales ratios for inventory level adjustments and inventory control levels.

  • Improve Customer Service – Offer customized delivery solutions that improve service delivery

We transform ideas into tangible industry grade solution with end to end (Hardware & Software Platform) delivery. Let us hear your idea and together we can build something new.
