Hi-Node (A Wireless Enterprise IoT Node)

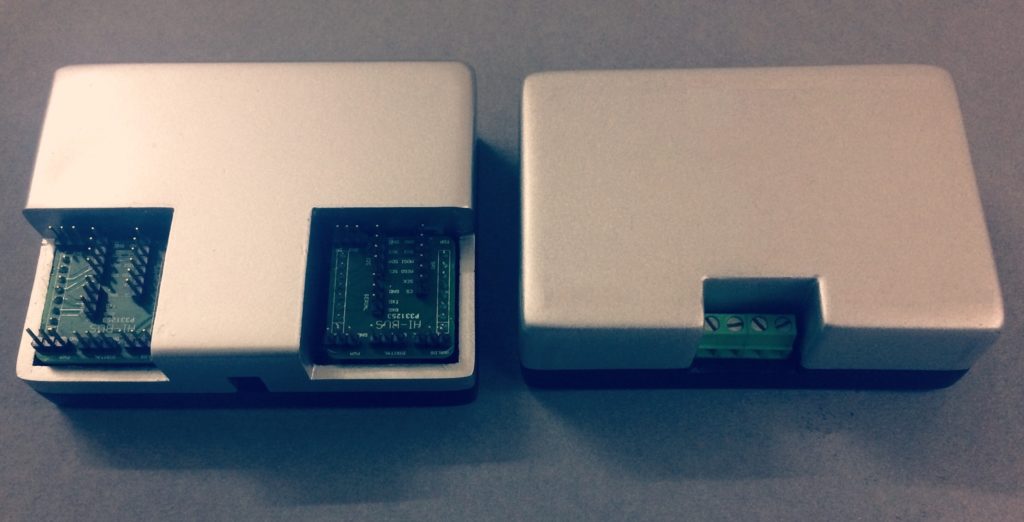

Hi-Node advance version Aka Enterprise Hi-Node includes 2 separate units are enterprise sensor & switching unit.

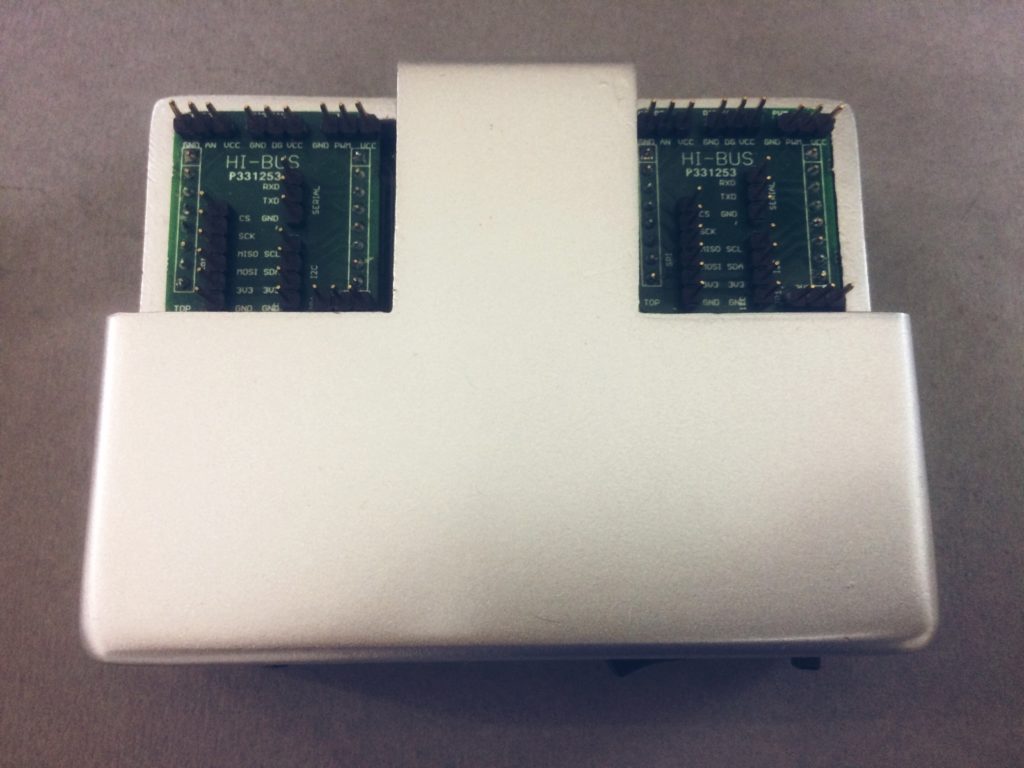

Enterprise Sensor unit is a battery (2700 mAh Li-ion) or USB (Optional) powered wireless zig-bee node having 2 separate mikroBUS standard sockets which will allow quick prototyping or production testing using 250+ mikroBUS™ add-on click boards with all types of sensors and transceivers with zero hardware re-configuration. Alternate custom Hi-Bus sockets are given on board in case of using other sensors than mikroBUS™ click boards.

Enterprise Switching unit powered through mains (230v) is a zig-bee node having 2 on-board relays to control any appliance/machines standalone.

Modular Node Features

Add on Features

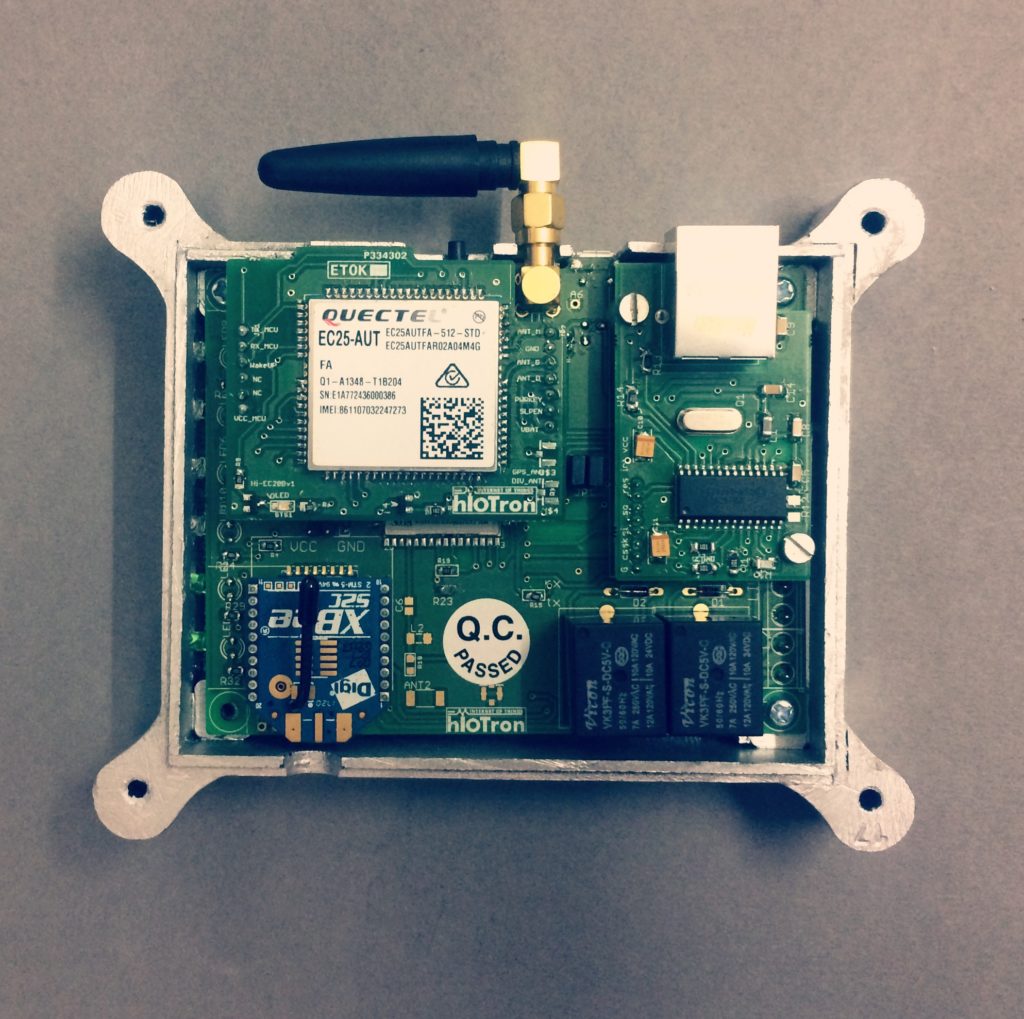

Hi-Gate (An Enterprise & Modular IoT Gateway)

Hi-Gate is the brain of this kit which is fully Modular & Enterprise IoT gateway with TI-CC3200 at its heart, it offers better computational power to run advance IoT algorithms & communication because of easy & modular integration of Inbound & Outbound connectivity protocols.

The main feature of Hi-Gate is to Get wireless data from Inbound Connectivity Protocols and process/send to hIOTron IoT server in IP network via WiFi/Ethernet/2G/3G/4G etc and similarly in a reverse way Get command from hIOTron IoT Server and send it back to local devices.

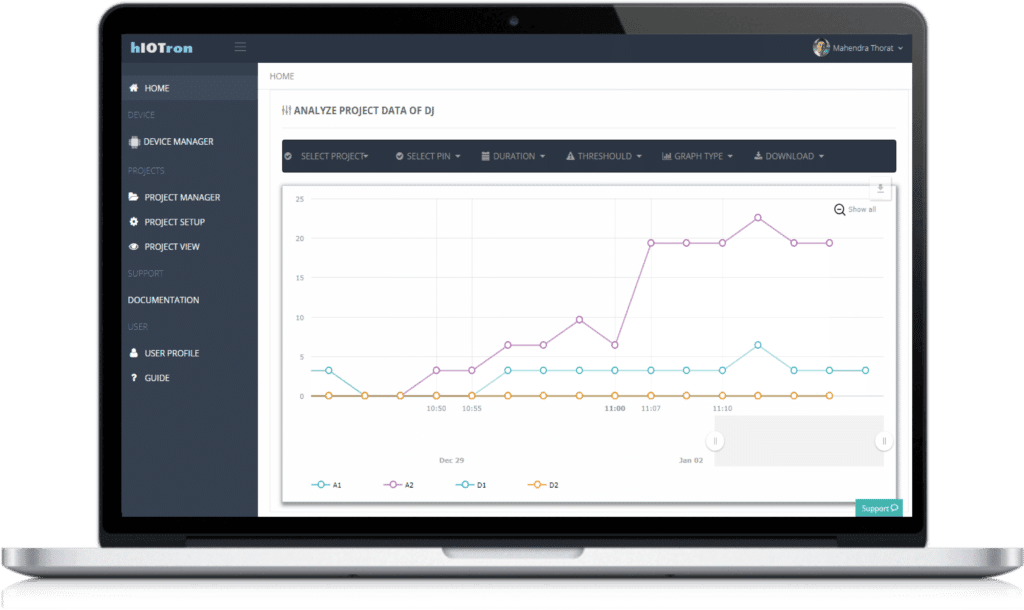

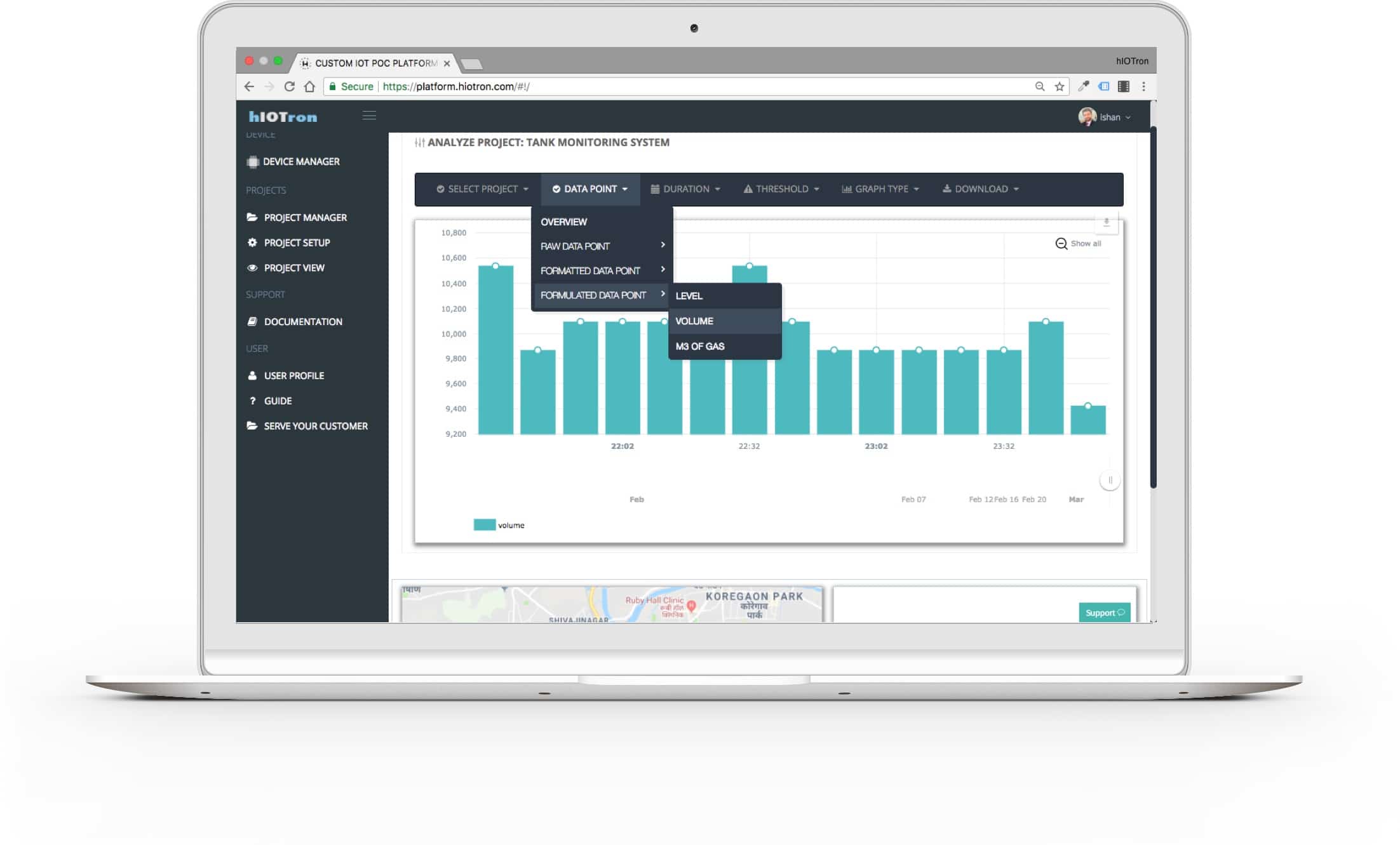

hIOTron IoT Platform (An Enterprise Platform)

Life-time free access of hIOTron IoT™ platform which enables rapid designing , developing, deploying, and operation of enterprise IoT applications to accelerate the IoT innovations right from PoC to Production. A rich set of device connectivity (Wired/Wireless) models, device management, Edge Analytics/Anomaly detection models,  end-to-end data security, data storage & machine learning into one platform. hIOTron IoT Platform turns any raw data from sensors and devices into actionable intelligence for your business.

FQA’s [Frequently Asked Questions]

Yes, you can use this kit to develop any IOT application which are based on Analog/Digital sensors for monitoring real world data & Actuators for controlling purpose while in case your application requires any specific communication protocols likes Serial,ModBus,CANBus or other enabled to fetch data & control devices then our technical team will customize the kit as per your application requirement before sending.

After POC, Based on your project/product requirement Hi-Gate/Hi-Nodes, Mobile Application/Dashboard will be fully customized and redesigned quickly to achieve low cost, size and other important product level parameters. To understand future development plan refer below table.

No, you don’t need to write even a single line of code for running any of your IOT project. Yes, with the help of hIOTron IOT Device Management Platform [HIDMP] you can easily configure, customize and simulate any of your IOT project quickly along with free access of Live Dashboard & Mobile application for Android & iOS platform.

Yes, you can connect to Internet via Wi-Fi & GPRS 2G,3G,4G (optional) but only one at a time

Hi-gate supports 3 major wireless communication protocols such as Zig-Bee, BLE 4.0 and Sub-1 as an inbound which can easily be configured with Hi-Nodes having the same respective protocols through hIOTron IOT Platform.

Up-to 25 Hi-Nodes can be connected under single Hi-Gate. In case of increasing the numbers please contact our technical team here.

Yes, you can interchange any Nodes to any Gateways very easily through platform.

As long as you will be running POC, no charges will be applicable for cloud or mobile application whereas for commercial application we have flexible pricing model.

Once you complete building your project through platform then you will be get the link from where you can download your project specific mobile application

Yes, you can integrate hIOTron POC kit to 3rd party IOT platform along with hIOTron team assistance.

Yes, you can customize your IOT project anytime, anywhere through platform and view the same changes in either on your dashboard or mobile application

You can develop unlimited POC’s with this IOT development kit. Only you need to have your project specific sensors & actuators with you.

Yes, this kit can be customized for such requirements or more which may includes some additional charges. Kindly contact us here to provide  complete product details.
