Logistics + Temperature Monitoring = Smarter Cold Chain System

The Internet of Things (IoT) is transforming the efficiency and efficacy of long distance food, pharmaceutical, and other perishable supply chains. Rather than merely consisting of freezers and freight trains, this supply chain, known as the “cold chain” or temperature-controlled supply chain, is now increasingly incorporating digital software solutions, secure cloud technology, and open architecture.

The result? A smarter cold chain system, where monitoring devices can provide managers with live data about temperature and location, mitigating any problems along the chain before they arise.

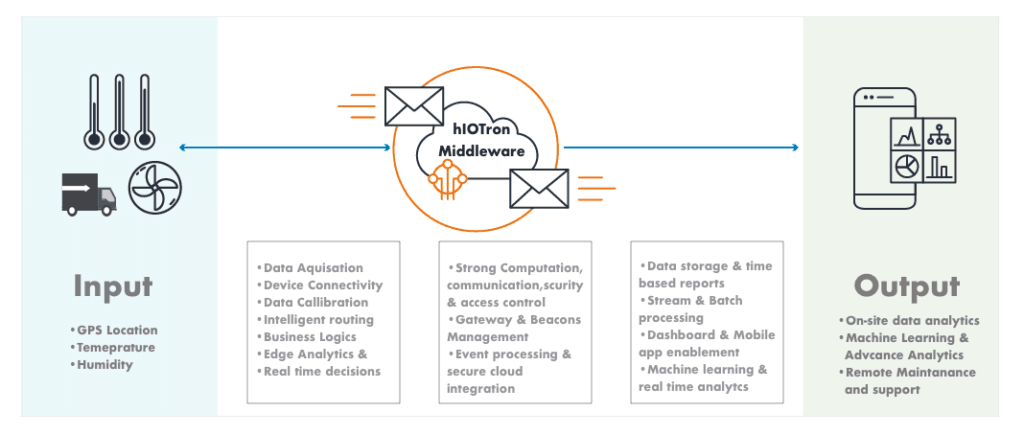

old chain management system

What does hIOTron Smart cold chain system solution include?

Information is Power in cold chain. After all, the cargo transported, be it via ship, airplane, truck or train, must be kept at the perfect temperature. Even the slightest change in conditions can spell disaster.

With potentially billions of dollars’ worth of cargo at stake worldwide, the careful live monitoring, sending and receiving of business-critical information is essential to success. When it comes to collecting the data, then following components required to collect real-time parameters which are exceptionally useful to make the complete process visible of passing the cargos from the manufacturer through suppliers, distribution centers, retailers and ultimately on to customers

Gateway specification

HI-8010LG is smart tracker act as a main central unit which is perfectly suitable for smarter cold chain application powered through mains, having majorly bluetooth for local and GSM for cloud connectivity with in-built GNSS module to precisely track the vehicle position. It is also equipped Li-ion for battery in case of power failure for 15-20days & EEPROM & RTC to store the records in case of network failure.

ComponentDetails
Modular BluetoothWork as a BLE scanner to communicate with temperature sensor equipped Beacons.
Modular GSMProvision for 2G, 3G & 4G network.
Internal GNSSGlobal positioning system/Global Navigation Satellite System.
RTCReal time clock to store data with time logs.
EEPROM (256MB)Memory to store 15-20 days records in case power or network failure.
Li-ion battery2700MAH battery backup in case of power failure
Internal GNSS antennaAn antenna used for GPS connectivity. Integrated into FM device PCB. Does not have external connector.
External GPRS antennaAn antenna used for GSM connectivity having external SMA connector.
Charging/Discharging circuitCharge & discharge internal battery through mains automatically.
Over voltage protectionProtect device through over voltage from mains.

Beacon with Temperature & Humidity sensor – HI-5480LN is specially designed for the detection of temperature and humidity, will have the basic function of detecting the environment temperature and humidity. With a sensitive response time of temperature and humidity, Operating Temperature Range: -40℃ to +60, Humidity detection range: ±0.4℃ and battery life is 1 year & replaceable.

ComponentDetails
Modular BluetoothWork as a BLE scanner to communicate with temperature sensor equipped Beacons.
Modular GSMProvision for 2G, 3G & 4G network.
Internal GNSSGlobal positioning system/Global Navigation Satellite System.
RTCReal time clock to store data with time logs.
EEPROM (256MB)Memory to store 15-20 days records in case power or network failure.
Li-ion battery2700MAH battery backup in case of power failure
Internal GNSS antennaAn antenna used for GPS connectivity. Integrated into FM device PCB. Does not have external connector.
External GPRS antennaAn antenna used for GSM connectivity having external SMA connector.
Charging/Discharging circuitCharge & discharge internal battery through mains automatically.
Over voltage protectionProtect device through over voltage from mains.

hIOTron IoT platform delivers a comprehensive platform as a service (PaaS) which enables the rapid design, development, deployment, and operation of consumer & enterprise IoT applications. hIOTron IoT platform takes care of end customer application dashboard & mobile application access along with all in one synchronized functionality for various application dependent features such as

  • Device Management – Manage & Register your Home Devices with proper Authentication & Authorization process.
  • Device Connectivity – Seamless connectivity from Platform to Hi-Gate & Hi-Gate to Hi-Nodes.
  • Data Storage – Store Important Devices and User Data to get best values results.
  • Data Analytics – Supports multiple analytical models in terms of scenarios (Condition bases automatic actions).
  • Dashboard & Application – Fully sync Dashboard & Mobile Application in Android/iOS/Windows.

Quickly and easily configures and controls whole-home audio systems, lighting, shades, thermostats, door locks, and security systems. Use this free home automation dashboard & mobile App to set up these devices with custom presets on an Android® Apple® iPad® and control them from iPad, iPhone®, and iPod touch® devices.

iot platform Dashboard

Powerful Features

Maintaining an optimal temperature during transportation of your food or pharmaceutical supplies is crucial in preventing costly spoilage. hIOTron wireless temperature monitoring solution provides a reliable and affordable way to ensure your coolers and freezers are working properly, potentially saving you thousands of dollars in unnecessary damage.

Top Class Benefits

Information is Power in cold chain system. After all, the cargo transported, be it via ship, airplane, truck or train, must be kept at the perfect temperature. Even the slightest change in conditions can spell disaster.

With potentially billions of dollars’ worth of cargo at stake worldwide, the careful live monitoring, sending and receiving of business-critical information is essential to success. When it comes to collecting the data, then following components required to collect real-time parameters which are exceptionally useful to make the complete process visible of passing the cargos from the manufacturer through suppliers, distribution centers, retailers and ultimately on to customers

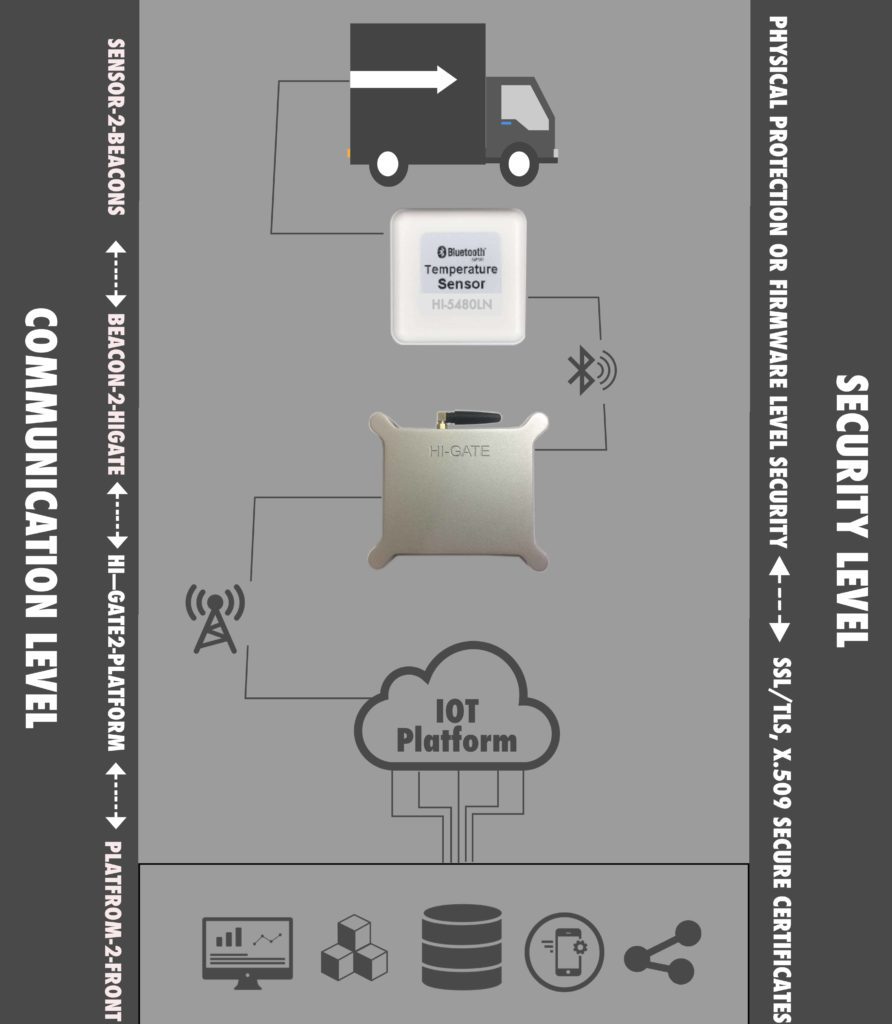

cold chain system
  • Reduce Spoilage and Waste: Receive real time alerts if a cooler’s temperature is outside of its nominal range.

  • Save Time and Resources: Automated system tracks temperatures for you, so no more manual checking.
  • Preventive Maintenance: Be aware of early warning signs that can help prevent cooler failure.

  • Monitor from Anywhere: 24/7 access from anywhere via the Internet. Android and iOS apps are free to download.

  • Maintain Regulatory Compliance: Tracking cooler temperatures can help you achieve and maintain regulatory compliance. *

  • Protect Your Reputation: There is nothing more valuable than your reputation – make sure it’s protected.

  • Other Important benefits: Improved customer Reliability on demand side & container Security, Efficiency, Manageability & Capacity on supply
    side.

We transform ideas into tangible industry grade solution with end to end (Hardware & Software Platform) delivery. Let us hear your idea and together we can build something new.
